TV10 DAC Situation Detection Location System

TV10 DAC Situation Detection Location System


    DAC is new technology in cable situation checking, and is closely focused by all over the world recent years. The essence of DAC is to use DAC voltage to replace power frequency AC withstand voltage test, on the basis to meet IEC60270 standard. DAC situation detection location system TV10, combines DAC withstand voltage test and partial discharge, to do non-destructive test and provide effective way to find the potential faults. With partial discharge measurement location function, it can locate the fault successfully. It's ideal equipment of operating maintenance department and test department.

Contact Us

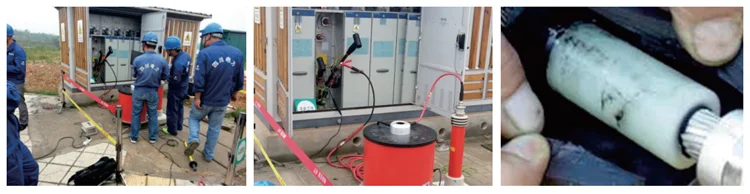

On-site application:
Technical Data:
Oscillating wave output maximum voltage
0-30 kV (pek) / 0-21.2 kV (rms)
Oscillation frequency range
50-800 Hz
High voltage charging current
10 mA
PD measurement range
50 pC~20nC
Partial positioning bandwidth
150kHz – 45MHz automatic adjustment
PD locating accuracy
0.1 m
Dielectric loss measurement range
0.1%-5%, automatic measurement
Control mode
Wireless control
Power supply
